Marine Air Flow International

Small Boat Grill Combination Systems

Combination Air Ventilation Systems for Smaller Vessels


We do manufacture an off the shelf engine room ventilation system that is designed for smaller vessel that do not require air dampers.


These air ventilation combo systems are a set size and shape and consist of:

  • A single mist eliminator intake grille
  • Custom duct and fan housing box
  • Optional 1 or 2 x 9” Compact Fans (12 or 24 volt)
  • Optional manual or auto fan speed controller

Fans can be added and set up as either supply or extraction air, or a combination if you choose to have 2 fans. With both fans on supply this combination grille system can service an engine room of up to 300 Horsepower. With 1 on supply and 1 on extraction these combination grilles can service an engine room of 0-150 Horsepower. We have white in stock however we can powder coat to your desired colour.

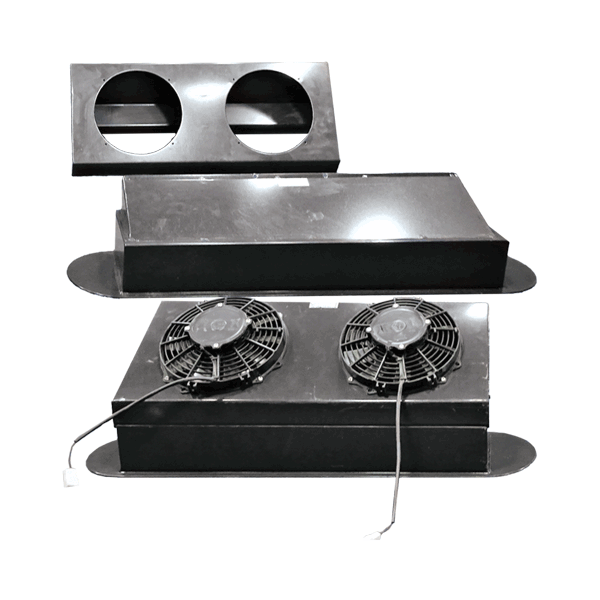

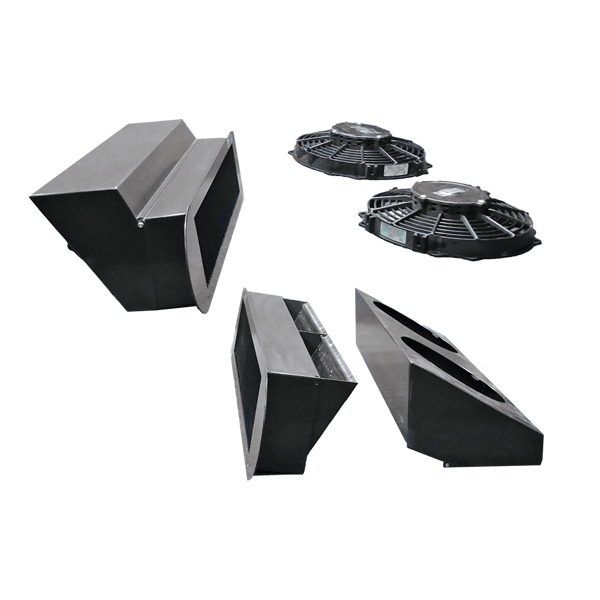

What does this combo system look like?

Slide through the images to your left to see our combination system suitable for smaller vessels.

Having your complete air ventilation system ready to install is often the best option for boat owners who would like to maintain the integrity of their engine room but stay within budget. While we stock these systems in White we can powder coat to your desired colour.

Spec Data For Small Vessel Air Intake Combo System

Options for this system are shown below in the pricing area however our Spec Data Sheetfor this system is also available for viewing or download.


Fans can be either 12 volt or 24 volt and can be added and set up as either supply or extraction air or a combination.

With both fans on supply this combination grille system can service an engine room of 0-300 Horsepower.

With 1 on supply and 1 on extraction these combination grilles can service an engine room of 0-150 Horsepower.


We have white in stock however we can powder coat to your desired colour. If you do require a custom colour that will add production time to the order.

Pricing:

We start our Grille Combination System with a base design of the intake grille and duct and then you can add fans and fan controllers from there. While you don't have to have the compact fans in the system is is our recommendation that you do. This will result is a much more effective engine room ventilation system giving you a cooler engine room with better operating conditions.


Options:

  1. Grille and Duct (no fans) - $2475.00 + gst
  2. Grille, Duct and Single Fan - $2725.00 + gst
  3. Grille, Duct & 2 fans (supply or extraction)  - $2975.00 + gst
  4. Grille, Duct, 2 Fans and manual speed controller actuator - $3455
  5. Grille, Duct, 2 Fans and auto speed fan controller - $4375.00

Please get in touch if you would like to order this system or for more information.
