Stop salt mist & spray from entering your engine room.
Salt spray and mist in your engine room has traditionally been one of the most difficult issues to control. Now with Marine Air Flow moisture reducing air intake grilles, you can remove the problem altogether. Damage such as blown turbo's, blocked air filters, wide spread corrosion and degradation of your valuable engine room equipment can now be avoided.
Features of our air handling units include, reduced damage to valuable plant and engine room components, custom made to suit your unique vessel requirements, no moving parts for affordable maintenance and they are supplied with a full installation kit and instructions.
Using engine induction or engine room fans, the moisture laden external air supply is drawn through our grille, passing through a complex system of vanes in the process. This action removes the moisture laden molecules from the air, leaving behind a considerably fresher air supply inducted into your engine room.
How Our Mist Eliminator Grilles Work
01
The moisture laden air is drawn into the face of the grille.
02
It then passes through a system of vanes which trap the moisture in the air and cause it to run vertically down the face of the vanes and then be expelled via the external drain.
03
The moisture reduced air is then fed into your engine room for use by your engine and other components.
04
The vanes are sufficiently complicated to trap the moisture, but not so complicated that they significantly slow the air flow.
Air Intake Grille Sizes and Shapes

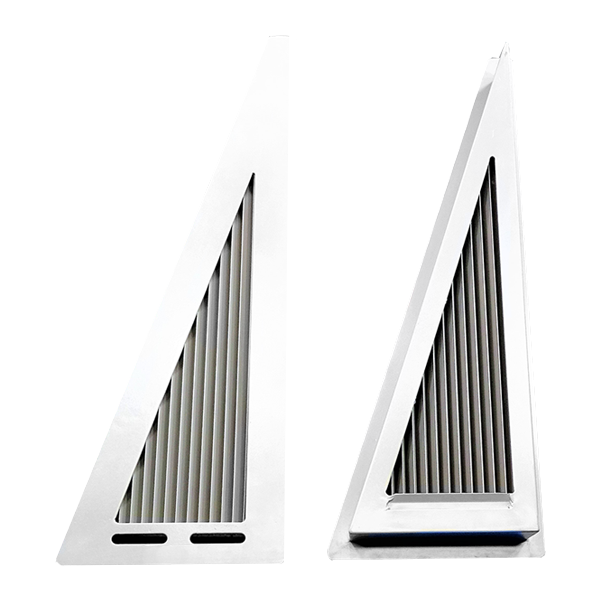

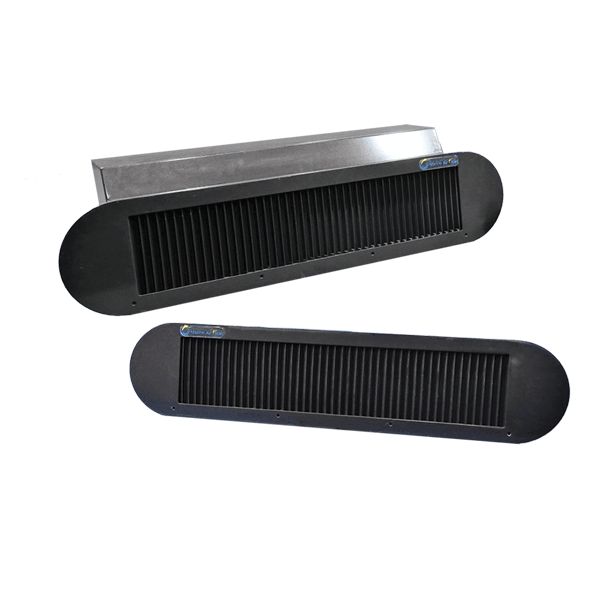

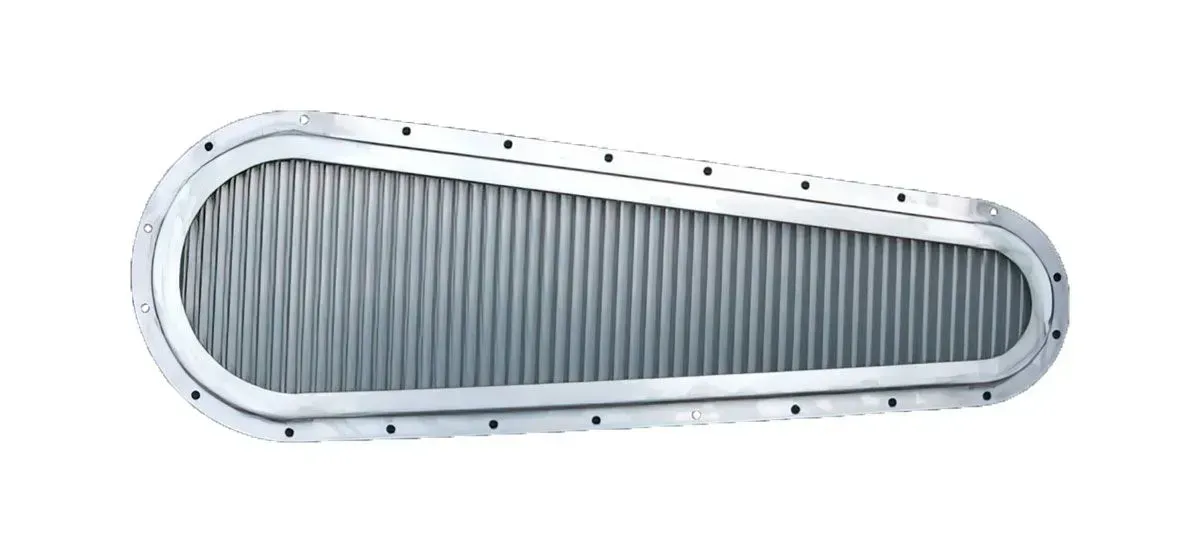

While we do have some standard sizes and shapes for our intake grilles, a lot of our projects are custom shapes to suit vesells and client requirements. View some of the unique sizes and shapes of Air Intake Grilles we've made to date.
Please note however that the size of the grille (or grilles) you require, is directly related to how much air you need, the size of your engine room and its components.
Ventilation Grilles Flange Info
01: Flush Flange
With this option the fixing flange is flush to the outside face of the grille. Once installed only the 3mm thickness of the flange protrudes outside of the vessel. 100mm of the grille thickness extends into the air ducting, reducing the airway by 100mm. The drain slots on this assembly are totally visible to the exterior face.
02: Stepped Flange
With this option the grilles extend 30mm to the exterior of the vessel and 70mm protrudes into the air ducting. On this assembly the drain slots maybe mounted on the underside edge and thereby are not easily visible. This achieves a more aesthetic external appearance.
01: Flush Flange
With this option the fixing flange is flush to the outside face of the grille. Once installed only the 3mm thickness of the flange protrudes outside of the vessel. 100mm of the grille thickness extends into the air ducting, reducing the airway by 100mm. The drain slots on this assembly are totally visible to the exterior face.
02: Stepped Flange
With this option the grilles extend 30mm to the exterior of the vessel and 70mm protrudes into the air ducting. On this assembly the drain slots maybe mounted on the underside edge and thereby are not easily visible. This achieves a more aesthetic external appearance.
03: Limited Flange
With this option the grille extends 70mm to the exterior of the vessel and only 30mm protrudes into the air ducting. This achieves the least restrictive passage within the air ducting. It is recommended that this arrangement is utilised in any restricted airway so as to maximise air flow.
03: Fixing Flange
The fixing flange is the area that surrounds the grille used for fixing the grille in place.
This is a standard size and is 40mm.
03: Limited Flange
With this option the grille extends 70mm to the exterior of the vessel and only 30mm protrudes into the air ducting. This achieves the least restrictive passage within the air ducting. It is recommended that this arrangement is utilised in any restricted airway so as to maximise air flow.
03: Fixing Flange
The fixing flange is the area that surrounds the grille used for fixing the grille in place.
This is a standard size and is 40mm.
Air Intake Grille Video Demonstration
The video below should help you to understand how our Air Intake Grilles actually work.
Our Grilles have no moving parts so you don't have to be concerned with tricky maintenance challenges, and in over 12 years in business we've never had one single failure, provided of course they are installed correctly. We did have someone install them back to front once but that was easily detected and corrected. They shall remain anonymous and it did expose something that we could improve upon. All our grilles now come with directional stickers so that can't happen again.
This short 2 minute video is a walk around that shows you how the grilles work. Please let us know any questions you might have and we would be pleased to answer them.
Performance Data Mist Eliminators
Performance data for our single and two stage mist eliminators.
Single Stage Grille
| Water Handling: | 250 litres / min over 1m 2 area |
| Max Face Velocity: | 5.9 metres / sec |
| Water Handling: | 100% visible |
Two Stage Grille
| Water Handling: | 250 litres / min over 1m 2 area |
| Max Face Velocity: | 9 metres / sec |
| Water Handling: | 100% visible |
Single Stage Grille
| Water Handling: | 250 litres / min over 1m 2 area |
| Max Face Velocity: | 5.9 metres / sec |
| Water Handling: | 100% visible |
Two Stage Grille
| Water Handling: | 250 litres / min over 1m 2 area |
| Max Face Velocity: | 9 metres / sec |
| Water Handling: | 100% visible |
Are you wondering what the difference is between single and two stage (or double stage) air intake grilles? This article will explain the differences and when they are used.
Finished Product Details
| Fins / Vanes: | Extruded aluminium vane section welded into position. |
| Surround: | Aluminium to 6106T6 grade. Fully Welded. |
| Supplied Finish: | Acid stripped and dipped. Fully immersed chromated & powder coated to chosen colour. |
| Painting: | Can be painted to suit, however we don't supply the grilles painted. |
| Extras: | Fabric coalescing filter fabric is available for extreme situations and extra air filtration. |
Spec Data & Downloads
Why MAFI Mist Eliminator Grilles?
Quality Control
We ensure product excellence through strict procedures & processes
Guarantee
We offer a 3 year 110% money back guarantee on our intake grilles
Easy Maintenance
Simply hose down with fresh water on your return back to port.
No Moving Parts
Our grilles are one piece and have no moving parts to be maintained
Why MAFI Mist Eliminator Grilles?
Quality Control
We ensure product excellence through strict procedures & processes
Guarantee
We offer a 3 year 110% money back guarantee on our intake grilles
Easy Maintenance
Simply hose down with fresh water on your return back to port.
No Moving Parts
Our grilles are one piece and have no moving parts to be maintained
Don't be the only boat heading out to sea without the protection of Marine Air Flow air intake grilles.
Air intake grilles are available starting from $1200 + gst.
The price of the grilles is dependent upon varying factors, and of course the size required to ensure accurate operating air supply, is the governing factor in our pricing structure.
average quote
$2000 - $3000
+ gst
On average an intake grille for a recreational fishing boat is typically two to three thousand dollars.
Our mist eliminator grilles come complete with the powder coat colour of your choice and are securely packaged for freight.
