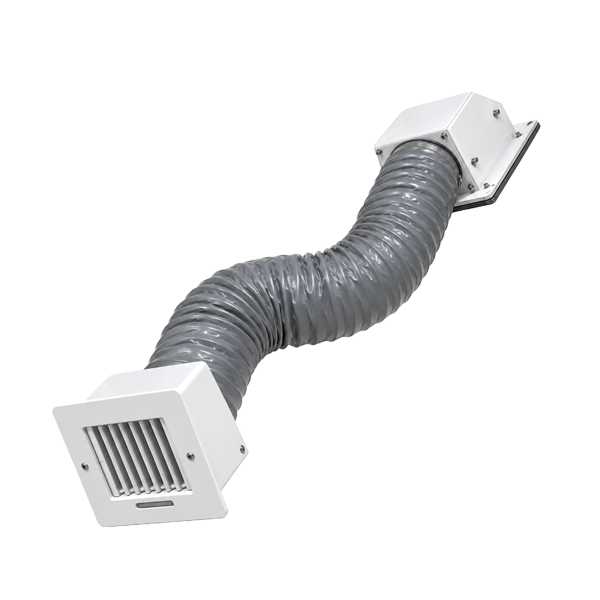

Marine Bathroom Extraction Kit
The Marine Bathroom Extraction Kit is a compact, purpose-designed ventilation solution for extracting odorous & air from marine sanitary spaces. Designed for use on commercial vessels, the system provides reliable airflow performance while minimising installation complexity and space requirements.
Supplied as a matched system, the kit ensures predictable performance by combining a marine-rated DC extraction fan with correctly sized ducting and outlet components.
Features Of Our Bathroom Extraction Kits

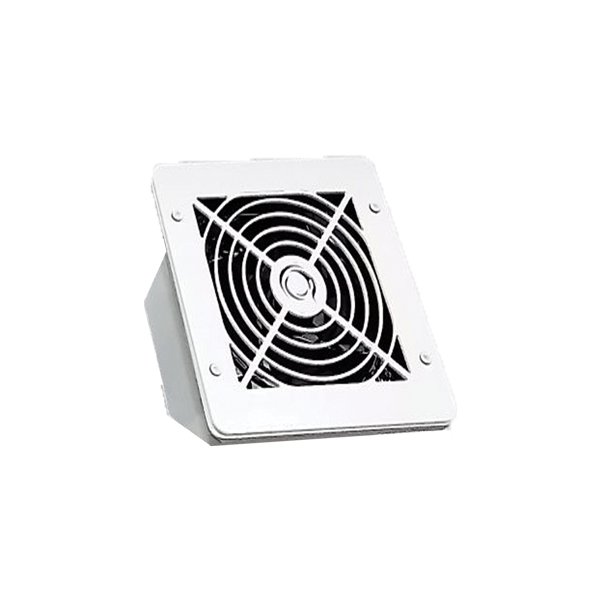

- Bathroom Extraction Fan: 24V DC axial fan optimised for low-to-medium static pressure applications.
- Ø75 mm Flexible Ducting: Marine-suitable flexible duct for confined spaces
- Outlet Grille (MAFI 140SQ): External outlet grille for efficient discharge.
- Hot Air Outlet: Exhausts air to atmosphere
Finished Product Details
| Power & Voltage: | 24V DC Power. Rated Current (A) : 1.2. Rated Power (W) : 28 |
| Materials: | Extraction fan components are powder coated aluminium. Flexi hose is provided as part of the kit. |
| Supplied Finish: | Powder coated white, hose is a light grey. |
| Sizes: | Outlet fan housing is 140mm square. Flexi duct is 75mm diameter. |
| Power & Voltage: | 24V DC Power. Rated Current (A) : 1.2. Rated Power (W) : 28 |
| Materials: | Extraction fan components are powder coated aluminium. Flexi hose is provided as part of the kit. |
| Supplied Finish: | Powder coated white, hose is a light grey. |
| Sizes: | Outlet fan housing is 140mm square. Flexi duct is 75mm diameter. |
Spec Data & Downloads
Installation Instructions
Installation Instructions are coming soon.
Why MAFI Extraction Kits?
Flexibility
These can be bolted through the deck, welded or glued if you prefer.
Guarantee
We offer a 3 year 110% money back guarantee on our high volume fans.
Avoid Corrosion
Ventilating small spaces can avoid condensation build up and corrosion
Easy Install
Allows ventilation to spaces that othewise might be challenging.
Why Bathroom Extraction Kits?
Flexibility
These can be bolted through the deck or welded if you prefer.
Guarantee
We offer a 3 year 110% money back guarantee on our high volume fans.
Avoid Corrosion
Ventilating void spaces can avoid condensation build up and corrosion
Easy Install
Allows ventilation to spaces that othewise might be challenging.
Prices
One size only priced at $1560 + gst
GST is an Australian tax that is charged at 10%. It isn't usually included on export invoices.
Contact Us
Please contact us with any questions you might have about our void ventilation systems. We would be more than happy to help.
While we make every effort to ensure pricing displayed here is accurate, there may be times that prices reflected above might be slightly different that what we quote you. Things like sizes, technical requirements and fan specifications may affect prices.
