Mixed Flow Fans
Smaller Fans For Smaller Spaces
Mixed flow fans are suitable when space is limited. Often used for toilets, fresh air vents, small rooms, battery cabinets and any space where our air diverters may not fit, these fans are available in a variety of sizes from 100mm diameter to 315mm diameter.
They have two speed settings, high and low and the speed is controlled via a switch on the fan. Ducting can be supplied to suit these fans and is available in 5 meter lengths. This is the maximum length we recommend with these fans. They can be set up as a series as they pull from one side and push from the other which is how they often come to be called "blowers" or "blower fans".
Grilles supplied with the mixed flow fans are typically an intake separator grille on the intake and a simple fashion grille on the outlet.
A full 3 year warranty is also supplied.
Performance Data - Mixed Flow Fans
Performance data for our range of Mixed Flow Fans.
Use this link for info on our MFP Fan Combo Kit
| Fan Size | A | B | C | D | Power | RPM | DB | Air Vol @ Low/Ltr | Air Vol @ High/Ltr | Weight | Cost |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100mm Fan | 232mm | 302.5mm | 97mm | 188mm | 0.03Kw | 2200 | 36 | 34@60PA | 44@60PA | 1.5kg | $290 |
| 125mm Fan | 204mm | 255mm | 122mm | 190mm | 0.03Kw | 2250 | 42 | 40@60PA | 60@60PA | 1.5kg | $290 |
| 150mm Fan | 245.75mm | 317mm | 147.5mm | 206.50mm | 0.05Kw | 2550 | 47 | 82@100PA | 114@100PA | 2.6kg | $300 |
| 200mm Fan | 253.5mm | 300mm | 199mm | 233.5mm | 0.11Kw | 2450 | 55 | 120@100PA | 195@100PA | 4.9kg | $420 |
| 250mm Fan | 308.5mm | 385mm | 255mm | 291mm | 0.18Kw | 2450 | 62 | 205@100PA | 357@100PA | 7.5kg | $540 |
| 315mm Fan | 349mm | 450mm | 310mm | 344mm | 0.32Kw | 2350 | 64 | 310@100PA | 502@100PA | 11kg | $720 |
Unfortunately these tables can get a little squeezed depending on the size of your monitor. Our spec data link below will enable you to see all the info you need in a pdf file.
| MAFI Part Code | A | B | C | D | E | Power (W) | RPM | DB | Air Vol @ Low Ltr/Sec | Air Vol @ HighLtre/Sec | KG | Cost |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAFI Part Code | 232mm | 302mm | 96.5mm | 188mm | 60mm | 30-35 | 1850-2200 | 33-36 | 34@60PA | 44@60PA | 1.5KG | $290 |
| MAFI-FN-AC-110V-MFP125 | 204mm | 255mm | 122mm | 190mm | 60mm | 32-38 | 1850-2250 | 36-42 | 40@60PA | 60@60PA | 1.5KG | $290 |
| MAFI-FN-AC-110V-MFP150 | 245.75mm | 317mm | 147.5mm | 206.5mm | 59.5mm | 49-62 | 1850-2250 | 39-47 | 82@100PA | 114@100PA | 2.6KG | $300 |
| MAFI-FN-AC-110V-MFP200 | 253.5mm | 300mm | 199mm | 233.5mm | 94.5mm | 135-165 | 1950-2450 | 48-55 | 120@100PA | 195@100PA | 4.9KG | $420 |
| MAFI-FN-AC-110V-MFP250 | 308mm | 385mm | 255mm | 291mm | 150.5mm | 210-290 | 1850-2450 | 54-62 | 205@100PA | 357@100PA | 7.5KG | $540 |
| MAFI-FN-AC-110V-MFP315 | 349mm | 450mm | 310mm | 344mm | 177mm | 330-412 | 1650-2350 | 58-64 | 310@100PA | 502@100PA | 11.0KG | $720 |
MIXED FLOW FANS - DOCUMENTS & DOWNLOADS
Performance Data - Mixed Flow Fans Combo Kit
Performance data for our range of Mixed Flow Fans.
Use this link for info on our single mixed flow fans

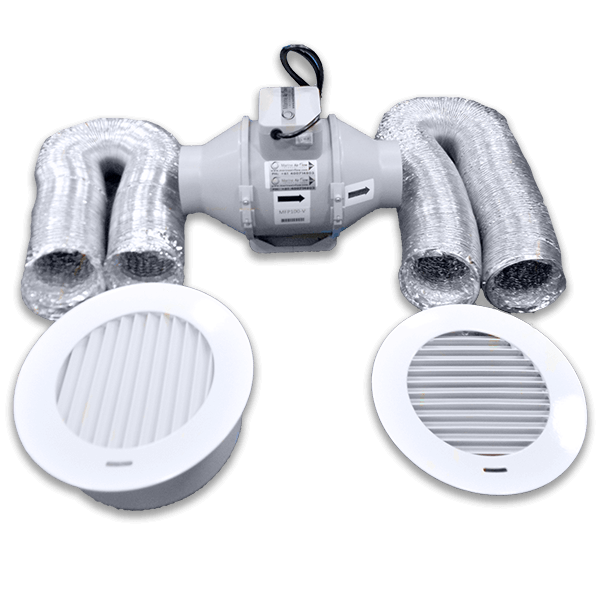

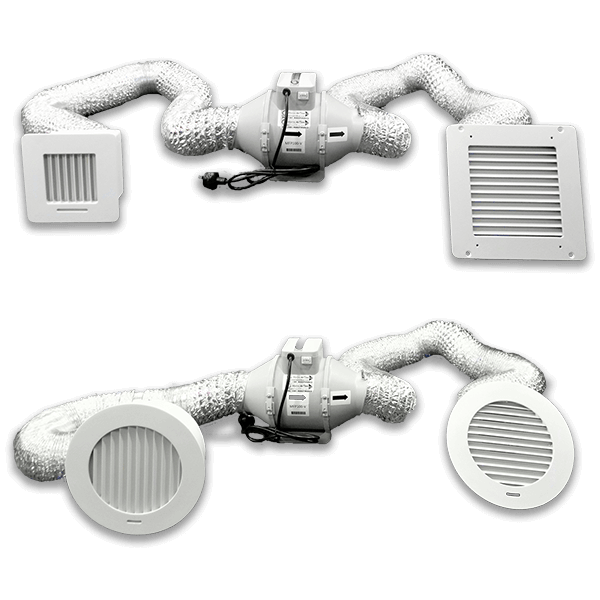

Mixed Flow Fans Combo Kit
We also sell a combo kit which is a complete void ventilation kit. It includes:
- A fashion grille (usually ceiling or wall mounted) that is used for the internal location
- A mist eliminator intake grille (typically mounted on the outer wall of the void space IE: in a vessel hull or the external wall of a plant room) that will help to remove moisture spray and dust from your intake.
- 5m of flexible ducting which can be cut into two pieces
- A 100mm mixed flow fan

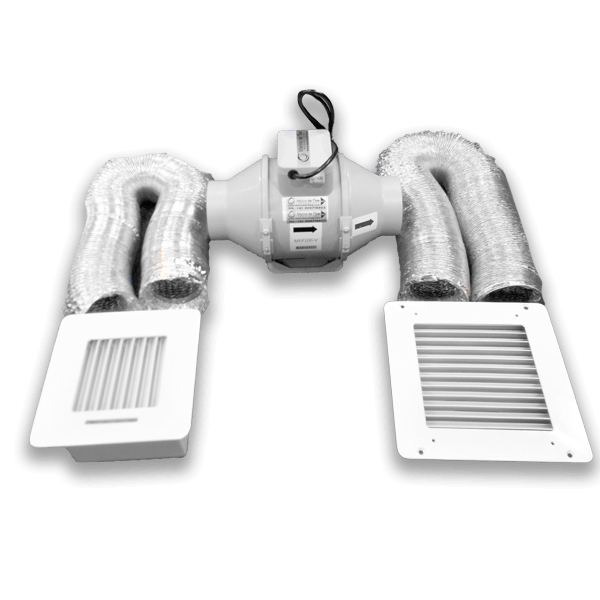

NB: When selecting your combination you have the choice of a round or square intake grille & a round or square fashion grille.
The Intake Grille is situated at the external point of the ventilation space. IE in a marine environment it will be in the hull as an external point of entry. In a plant room it could be set into the exterior wall for intake or venting.
The Fashion Grille is typically set into the ceiling of a galley for example, with the fan in the crawl space of cavity and the outlet grille at the opening to atmosphere (IE the plant room external wall).
Why Mixed Flow Fans?
- Ideal for smaller area's where our fan diverters may not fit
- Available in varying sizes from 100mm to 315mm
- Can be linked in a series easily
- Dual speed options
- Can pull and push the air.
We stand by our products and offer a 110% money back guarantee!
Pricing for Mixed Flow Fans
Pricing for all sizes of our mixed flow fans
Our Mixed Flow Fan Combo Kit is only available with the 100mm fan.
This full kit is priced at $1975.00 + gst
