Finger guardS
Finger GuardS
Finger guards to meet OH&S standards

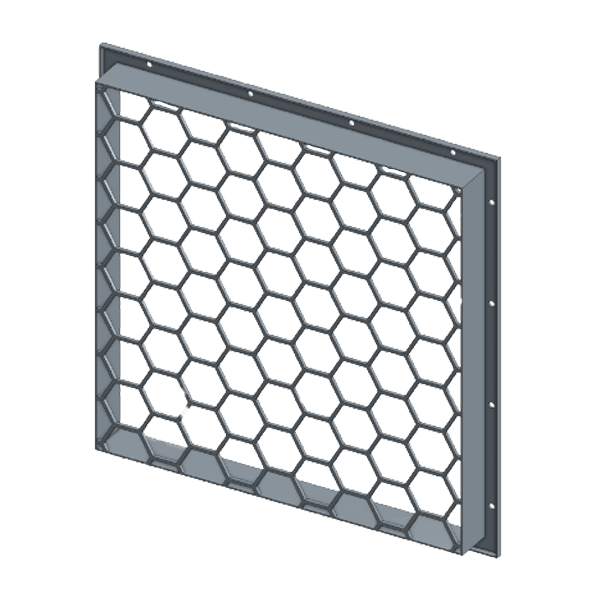

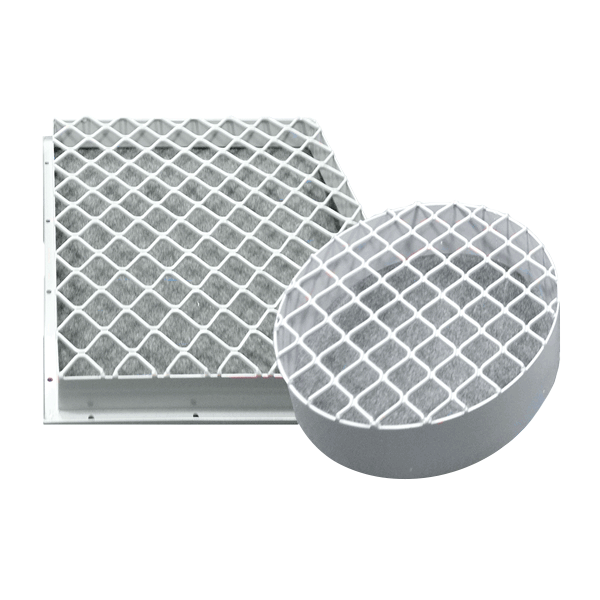

Protecting your staff and crew is of utmost importance, which is why we now offer finger guards to complement our air dampers & engine room fans. These guards are available in square or round shape and are manufactured from 5083 grade aluminium. Available in all sizes and powder coated to your required colour.
Supplied with an installation kit complete with 316 stainless steel fixings complete with isolation bushes to avoid any dissimilar metals challenges. The bolt holes for these finger guards are compatible with our other products so no extra holes and drilling is required.
A full 3 year warranty is also supplied.
About Our Finger Guards
- Available for both our High Volume and Compact Fans
- Additional in-built safety for crew and clients
- Assist in meeting OH&S standards
- Manufactured from marine grade aluminium
- Available in square or round shapes
- Coalescing filter fabric can also be added.
- Mounting brackets also available
- Coalescing filter fabric can also be added.
- Mounting brackets also available
Performance Data - High Volume Fan Finger Guards
| Footprint: | Mount Style | Use |
|---|---|---|
| 340 dia | Circular | Fits over our 390mm High Vol fan mount |
| 390 sq | Square | Fits to our matching damper size |
| 440 dia | Circular | Fits over our 490mm High Volume Fan mount |
| 490 sq | Square | Fits to our matching damper size |
| 540 dia | Circular | Fits over our 590mm High Volume Fan mount |
| 590 sq | Square | Fits to our matching damper size |
| 768 dia | Circular | Fits over our 850mm High Volume Fan mount |
| 850 sq | Square | Fits to our matching damper size |
Finished Product Details - HV Fan Finger Guards
| Footprint: | Circular: 340mm, 440mm, 540mm, 768mm. Square: 390mm, 490mm, 590mm, 850mm |
| Materials: | Marine grade aluminium, fully welded |
| Supplied Finish: | Aluminium, or powder coated to your desired colour |
| Warranty: | Supplied with a full replacement 3 year warranty |
Performance Data - Compact Fan Finger Guards
| Footprint: | Mount Style | Use |
|---|---|---|
| 12 inch dia | 90 degree or 45 degree mount bracket | Fits our 12" compact fans |
| 9 inch dia | 90 degree or 45 degree mount bracket | Fits our 9" compact fans |
Finished Product Details - Compact Fan Finger Guards
| Footprint 9": | Width: 11 inch - 280mm Height: 10½ inch - 265mm |
| Footprint 12": | Width: 14 ¾ inch - 375mm Height: 15½ inch - 395mm |
| Materials: | 5083 grade aluminium, fully welded |
| Supplied Finish: | Powder coated black (to match fans) |
| Warranty: | Supplied with a full replacement 3 year warranty |
Spec Data Sheets
As this is such a simple product, we do not have spec data sheets for finger guards. The finished product details are above.
High Vol Guards
| Size | Cost |
|---|---|
| 340mm dia Round or 390 Square | $300 + gst |
| 440mm dia Round or 490 Square | $330 + gst |
| 340mm dia Round or 390 Square | $360 + gst |
| 340mm dia Round or 390 Square | $410 + gst |
Our round high volume finger guards fit over the top of our high volume fan mounts and our square finger guards typically fit against the corresponding damper size.
Compact Fan Guards
| Size | Cost |
|---|---|
| 9 inch finger guard | $240 + gst |
| 12 inch finger guard | $290 + gst |
NB: Prices are the same whether you require a 90 degree mount or a 45 degree mount. Mount preference must be known prior to ordering.
GST is an Australian tax that is charged at 10%. It isn't usually included on export invoices.
Contact Us
Both our Compact finger guards and our high volume fan/damper guards are manufactured from marine grade aluminium and fully welded. Please contact us if you need help.
