digital air-on-demand system
DIGITAL air on demand
Digital Red Lion Fan Speed Controller
Our Digital Air-On-Demand is ONLY available in AC.
The Red Lion 4.3" CR1000 Human-Machine Interface (HMI) is utilised by MAFI to control the operation of all VSD's from a single panel.

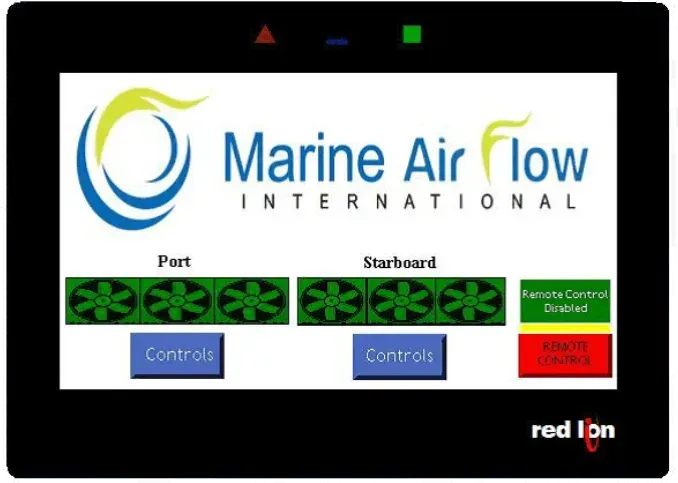

The CR1000 HMI module includes a full-colour 4.3" touch-screen panel with 2 serial ports, 1 Ethernet port and an SD port. The Red Lion system provides real-time feedback on the performance of the VSDs, allowing the user to adjust the fan's speed to optimise engine room ventilation.
Additionally, the Red Lion system has a sleek, modern look that is not out of place on the most luxurious of control panels.
Analogue Vs Digital Systems
| Feature | Analogue System | Red Lion system |
|---|---|---|
| Switch between man/auto/off | Yes | Yes |
| Change manual speed | Yes | Yes |
| Change direction of flow | Yes | Yes |
| Displays live data | No | Yes |
| Can be programmed into auto ship management system | No | Yes |
| Shows system status | No | Yes |
| Allows performance diagnostics to be viewed | No | Yes |
| Has real time data logging | No | Yes |
| Illuminates in low light situations | No | Yes |
| Available in DC | Yes | No |
Our Air-On-Demand Explainer Video
Features Of Our Air-On-Demand Digital Red Lion
- Easily change between automatic mode, manual extract mode, manual supply mode and OFF (note - we STRONGLY recommend supply air as it is far more efficient)
- Ability to quickly adjust speed of fans manually in the engine room

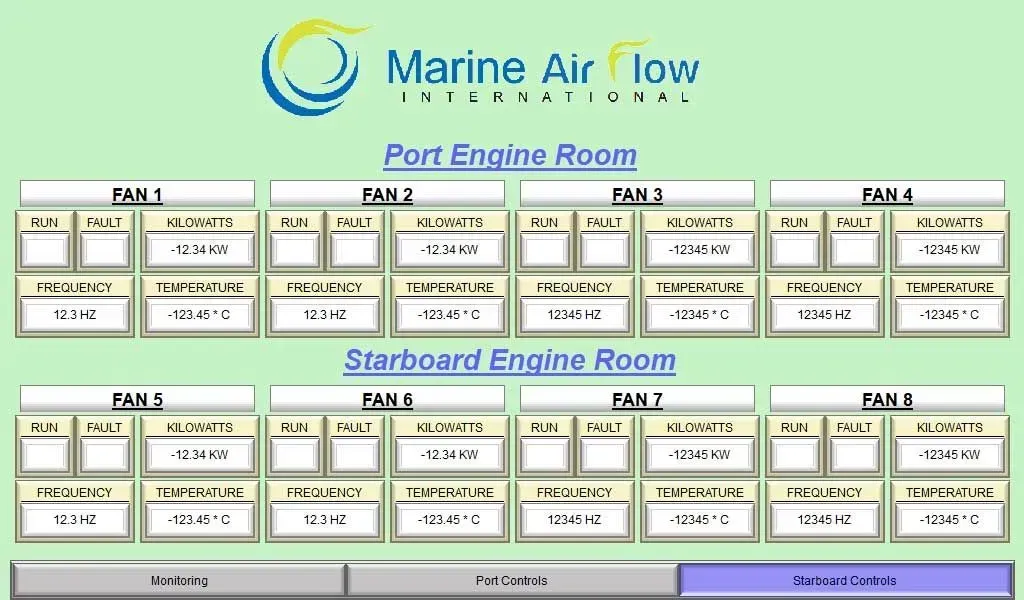

- Control screens display live data regarding engine room temperature, frequency output and power usage
- Status of the system is visually displayed (Alarm/Warning/Running) allowing for easy identification when errors occur
- Easily change between automatic mode, manual extract mode, manual supply mode and OFF (note - we STRONGLY recommend supply air as it is far more efficient)
- Ability to quickly adjust speed of fans manually in the engine room
- Readouts screen shows live analogue current draw, motor voltage, heat sink temperature and DC link voltage
- Ability to perform diagnostics on system for optimisation
- Option to be programmed into a ship management system (via Modbus Addressing)
- Real-time data logging
- Ability to control multiple VSD’s on a single control panel

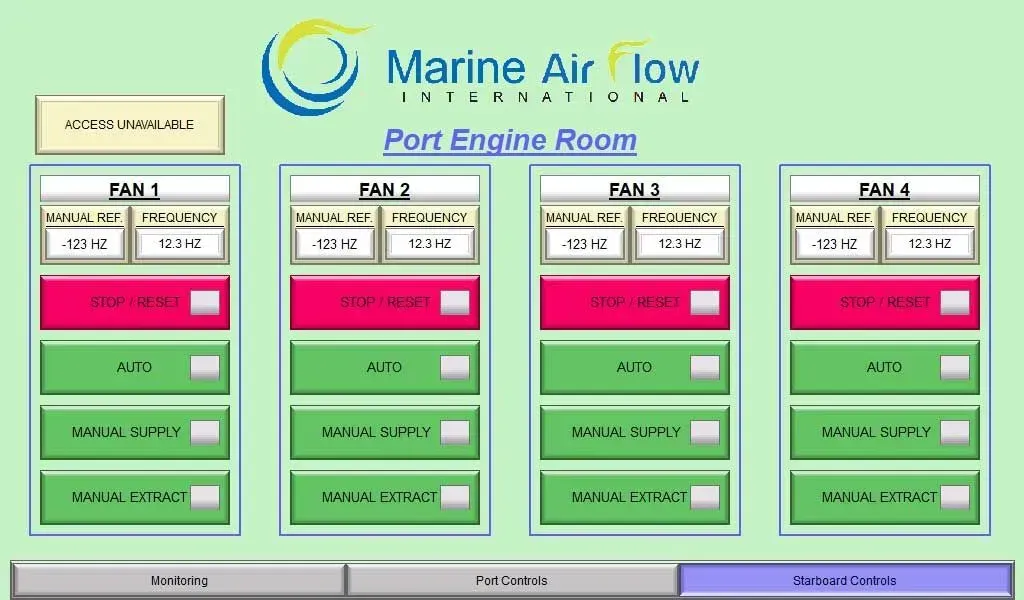

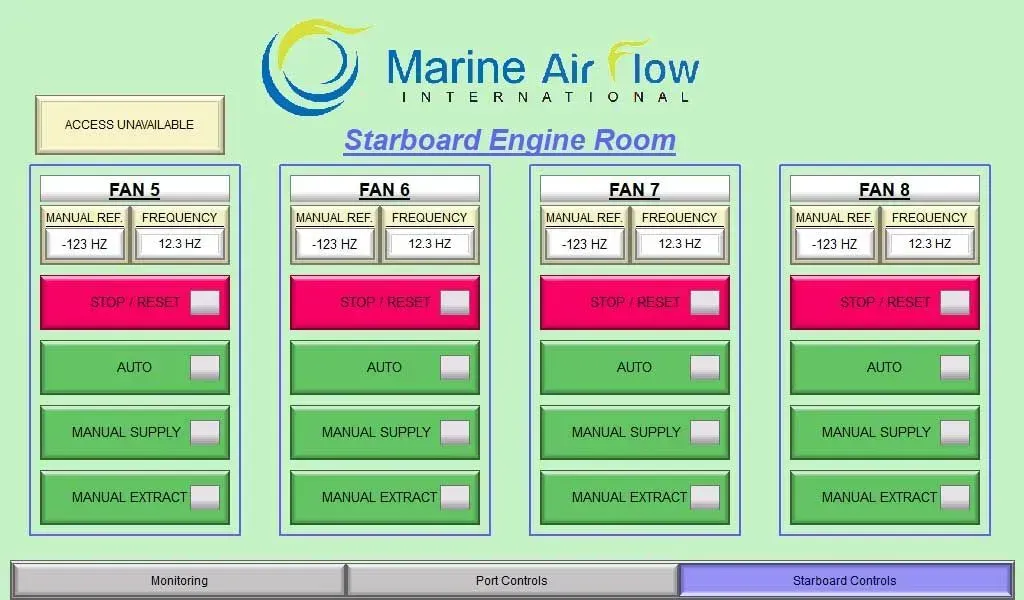

AC Red Lion Controller Screens
Spec Data & Downloads
Installation Instructions
Digital Air-On-Demand Installation Instructions will be available soon. Our User Manual is now available
AC Red Lion Prices
Our Digital (Red Lion) Air-On-Demand unit is available AC only.
The starting price for these units is $2880 + gst.
(Typically they sit at around $3800 for most applications)
GST is an Australian tax that is charged at 10%. It isn't usually included on export invoices.
Contact Us
If you have any questions about which Air-On Demand Fan Speed Controller might be suitable for your purpose, please contact us and we would be happy to help.
While we make every effort to ensure pricing displayed here is accurate, there may be times that prices reflected above might be slightly different that what we quote you. Things like sizes, technical requirements and fan specifications may affect prices.
