Marine man access dampers
Man Accessible Fire Flaps to Protect Your Engine Room
As the name suggests this damper design allows accessible passage through the air duct via the damper into the engine room space. This concept allows the air out duct space to be utilised for personnel access. Dual purposing the air duct to also become a man access reduces total deck space needed which means these dampers may fit where you have limited deck area. Using these dampers will increase usable deck space for cargo, seating and other purposes.
The multi purposing of the air duct space also reduces build costs and improves deck flow and function.
If your vessel is in survey and you need to meet a certification level, we can also supply A-60 class certified air dampers

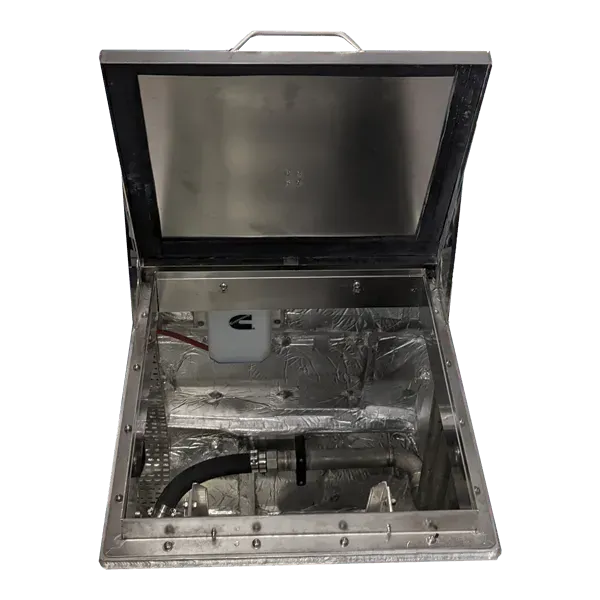

About Our Stainless Steel Man Access Dampers
- Designed and constructed of 3mm #316 Stainless Steel
- Designed to meet AMSA and A-60 ratings
- The damper finish is electro polished stainless steel
- Complete with stainless steel trims to protect engine room insulation from damage due to regular access
- Can be activated either manually or via fail safe approved 24 V DC Actuator.
- Stock sizes available - see pricing chart below, with custom sizes by request
Finished Product Details - SS Man Access Air Dampers
| Footprint: | 693mm length x 670mm width with an opening of 600mm x 600mm |
| Materials: | Stainless Steel 316 marine grade, fully welded. |
| Supplied Finish: | Stainless steel is electropolished to better increase its protection from corrosion. |
| Action: | Manual pull cable / Automatic 24v DC Actuator |
| Sizes: | We have the following stock sizes. (length x width x depth) 600 x 600 opening (approx 23kg) |
Spec Data & Downloads
Installation Instructions

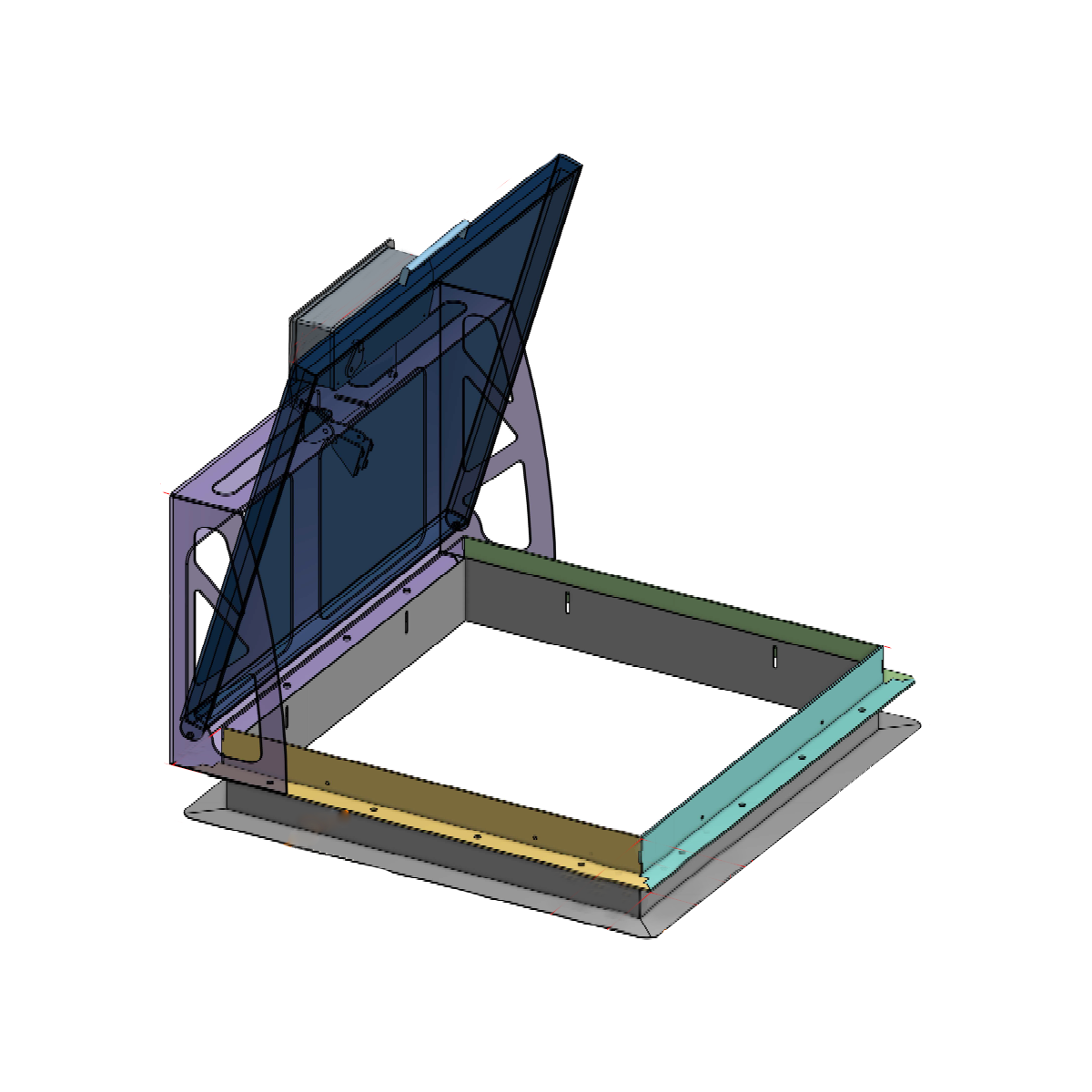

Installation docs will be uploaded shortly. We do have a 3D view and an installation drawing.
Installation Instructions
As this is a custom order, installation instructions will be provided with your order.

Spec Data Sheets
Spec Data sheets will be provided with your order. Please talk to our team prior to ordering to ensure you get the correct size for your application.
Why MAFI Man Access Dampers?
Limited Access
Perfect for when limited space is a challenge, these access dampers allow you to make the most of the area you have.
Approvals
Designed to meet AMSA and A-60 ratings for Australian use in a range of circumstances.
Open For Air Shut for Fire
The dampers utilise access to a compartment or engine room while still allowing peace of mind with regard to shutting off air supply when needed.
Simple Installation
Our Man Access dampers are supplied as one unit. You don't have to try to match access openings with dampers, it is all supplied as one unit.
Why MAFI Man Access Dampers?
Limited Access
Perfect for when limited space is a challenge, these access dampers allow you to make the most of the area you have.
Approvals
Designed to meet AMSA and A-60 ratings for Australian use in a range of circumstances.
Open For Air Shut for fire
The dampers utilise access to a compartment or engine room while still allowing peace of mind with regard to shutting off air supply when needed.
Simple Installation
Our Man Access dampers are supplied as one unit. You don't have to try to match access openings with dampers, it is all supplied as one unit.
While we do only have one standard size at present, we can manufacture this item to suit custom sizing.
We are hoping to have another standard size option available early in the new year.
Available Size
| Size | Cost |
|---|---|
| 600x600x10 | $2850 (+gst) |
| Manual Activation Kit | + $225 (+gst) |
| Auto Activation Kit | + $930 (+gst) |
GST is an Australian tax that is charged at 10%. It isn't usually included on export invoices.
Contact Us
Please contact us with any questions you might have about our man access dampers. We would be more than happy to help.
