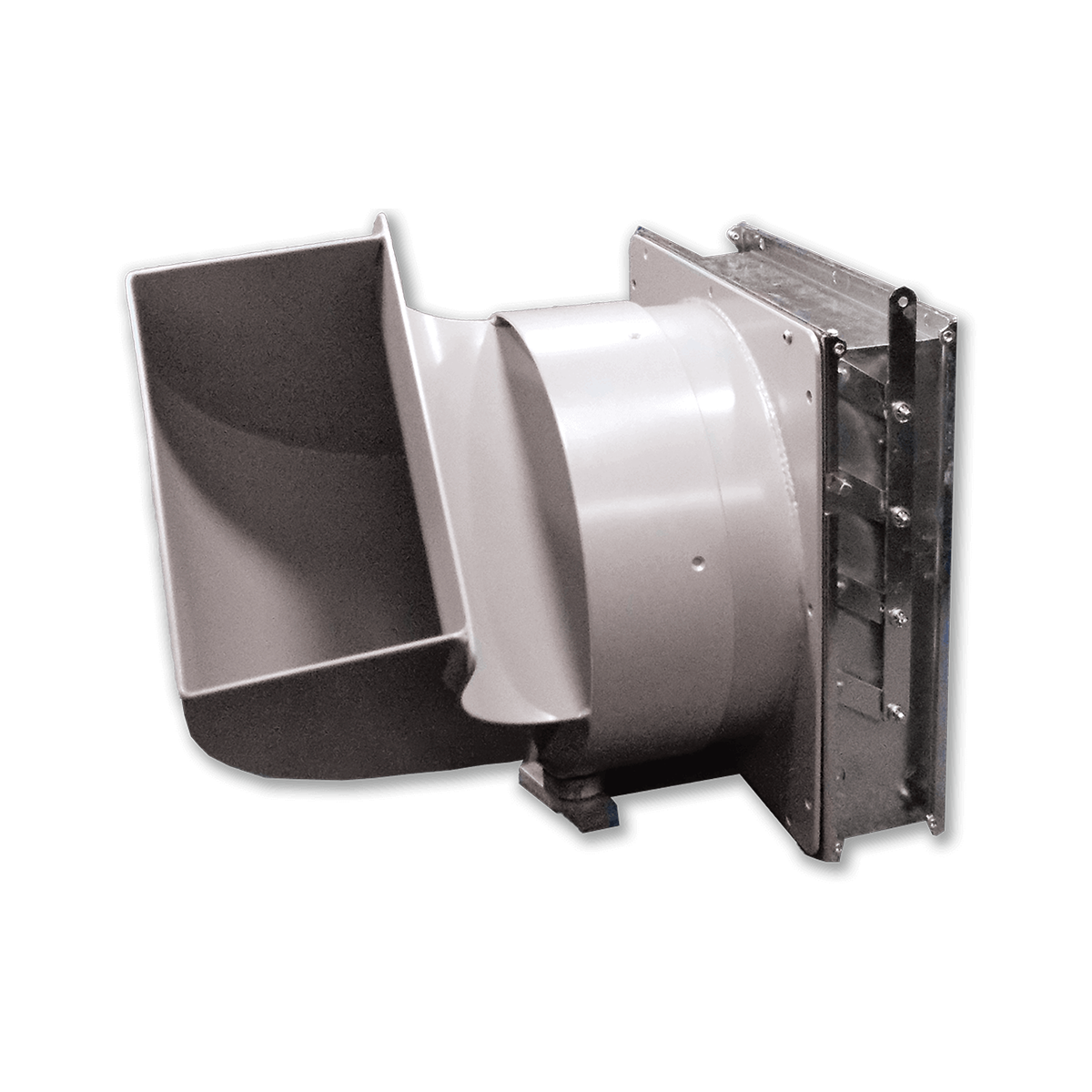

Fire Flaps to Protect Your Engine Room
Air Dampers are a necessary requirement for the engine room of any commercial in-survey vessel, and are also a good idea on non survey craft.
Typically Air Dampers are either triggered automatically or manually, and effectively close the air supply to the engine room to allow fire suppression equipment to work. We can manufacture and supply Air Dampers (Fire Flaps) either in conjunction with our Air Intake Grilles, our High Volume Fans or supplied as a stand alone product.
They can be mounted immediately rear of the grilles, within the duct work itself, on the bulkhead or deck head penetration, or any penetration that serves air into or out of the engine room.
Our Air Dampers can also be supplied with a control cable that runs from the damper to an external location outside of the engine room space. This manual control is easily operated by disengaging the pull ring from the keeper bracket. This action trips the spring-loaded damper louvre which closes off the air supply to your engine room. This is also a semi auto control. If there is fire or intense heat in the vicinity of the control cable (which is a synthetic material), the cable will melt and trigger the flap automatically. This manual activation kit is available for $250 + gst.
For a fully automatic system, we can supply the dampers with a 24V DC actuator. This actuator works via a temperature probe mounted in the air stream, and once the probe reaches 72°C it will shut the damper automatically. The actuator will also trip if the power supply to the system is turned off. These automatic controllers are a great option for a set and forget situation ensuring full peace of mind. These auto activation kits are available for $825 + gst
If you use an Air Damper system, you will need to test and prove the system annually for a surveyor. To reset after this test simply re-pull the cable and re-engage the ring into the keeper bracket. It's very easy.
If your vessel is in survey and you need to meet a certification level, we can also supply A-60 class certified air dampers
About Our Stainless Steel Dampers
- 11 Stock sizes ready to be picked off the shelf
- Manufactured to size and shape.
- Can be easily installed by an owner operator.
- Can be supplied singly or in conjunction with air intake grilles or our AC or DC Fans.
- Manual or Automatic release.
- Easy to reset after testing.
- Meets NSCV & USL code.
- 11 Stock sizes ready to be picked off the shelf
- Manufactured to size and shape.
- Can be easily installed by an owner operator.
- Can be supplied singly or in conjunction with air intake grilles or our AC or DC Fans.
- Meets NSCV & USL code.
- Manual or Automatic release.
- Easy to reset after testing.
Finished Product Details - SS Air Dampers
| Fotprint: | Matches High Vol Ac/Dc Fan housing footprint |
| Materials: | Stainless Steel 316 marine grade, fully welded. |
| Supplied Finish: | Stainless steel is electropolished to better increase its protection from corrosion. |
| Action: | Spring loaded louvre / Automatic 24v DC Actuator |
| Sizes: | We have the following stock sizes. (length x width x depth) 200x200x100 - 200x730x100 - 200x970x100 280x280x100 - 280x590x100 390x390x100 - 390x730x100 - 390x1070x100 490x490x100 590x590x100 850x850x100 |
Spec Data & Downloads
Why MAFI Air Dampers?
Code Reqiurements
Our stainless steel dampers meet NSCV & USL code
Manual Fire Activation
Our dampers can be triggered by a manual activation system.
Auto Actuated
A 24v DC actuator is an option which works via a temperature prove.
The Perfect Fit
Our dampers have the same footprint as our high volume fans.
Why MAFI Air Dampers?
Code Reqiurements
Our stainless steel dampers meet NSCV & USL code
Manual Fire Activation
Our dampers can be triggered by a manual activation system.
Auto Actuated
A 24v DC actuator is an option which works via a temperature prove.
The Perfect Fit
Our dampers have the same footprint as our high volume fans.
Smaller Sizes
| Size | Cost |
|---|---|
| 200x200x100 | $1390 + gst |
| 200x730x100 | $1595 + gst |
| 200x590x100 | $1690 + gst |
| 280x280x100 | $1490 + gst |
Manual activation kits are available for $265 + gst.
Auto activation kits are available for $825 + gst or can be supplied pre-fitted to your damper for $930 + gst
Larger Sizes
| Size | Cost |
|---|---|
| 390x390x100 | $1595 + gst |
| 390x730x100 | $1995 + gst |
| 390x1070x100 | $2480 + gst |
| 490x490x100 | $1790 + gst |
| 590x590x100 | $1890 + gst |
| 850x850x100 | $2990 + gst |
GST is an Australian tax that is charged at 10%. It isn't usually included on export invoices.
Contact Us
Yes we can manufacture stainless steel air dampers to size, however it would be best if you contacted us first so we can talk about your requirements.
Smaller Sizes
| Size | Cost |
|---|---|
| 200x200x100 | $1390 + gst |
| 200x730x100 | $1595 + gst |
| 200x590x100 | $1690 + gst |
| 280x280x100 | $1490 + gst |
Manual activation kits are available for $265 + gst.
Auto activation kits are available for $825 + gst or can be supplied pre-fitted to your damper for $930 + gst
Larger Sizes
| Size | Cost |
|---|---|
| 390x390x100 | $1595 + gst |
| 390x730x100 | $1995 + gst |
| 390x1070x100 | $2480 + gst |
| 490x490x100 | $1790 + gst |
| 590x590x100 | $1890 + gst |
| 850x850x100 | $2990 + gst |
GST is an Australian tax that is charged at 10%. It isn't usually included on export invoices.
Contact Us
Yes we can manufacture stainless steel air dampers to size, however it would be best if you contacted us first so we can talk about your requirements.
Actuators For Our Air Dampers

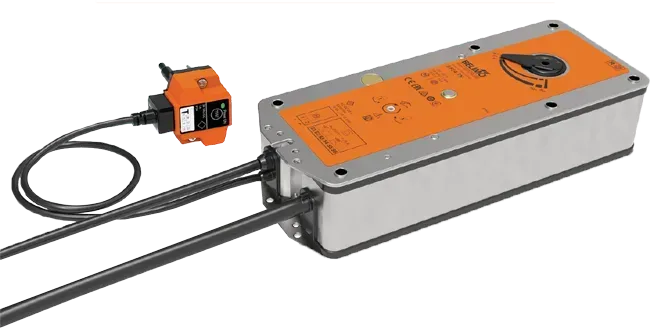

These Belimo Actuators are available as an option for our Stainless Steel Air Dampers.
- Automated fail safe DC actuator for SS Dampers
- Require positive and negative connection to power up
- Will trigger with any interruption of power as a fail safe.
- They also have an inbuilt thermal trigger that will activate when engine room temp exceeds its trigger point
- There are 2 pre-set trigger point options:
- 1 is 72 degrees Celsius and is the standard option.
- 2nd is 95 degrees Celsius and is typically used if the actuator is located near an exhaust or external heat source.
- They can be fitted to most damper sizes. Please ask if unsure.
- Available as a stand alone product or pre fitted to dampers prior to dispatch.
- Available from $825.00 or from $930.00 + gst fitted.
01
Engine Room Info:
We need to know:
- the height, width and depth of your engine room or alternatively
- the engine room volume
- whether you have AC or DC power and whether your system is 12 or 24 volt.
02
Engine Information
We need to know:
- number of main engines in your boat
- the total horsepower of these engines
- the make and model if you have it
03
Existing Penetrations
If you have existing penetrations we need:
- the shape of your grille penetration
- the area of your grille penetration or the dimensions
- the number of intake and outlet penetration you currently have
04
Current Fans
If you have current fans, we would love to know their make and model so we can be assured they are suitable for our system. If not, we can of course quote you on fans too.
05
Extra Info
If this is a new build a GA would be ideal.
We also need to know what extra equipment might be in your engine room and the horsepower of that equipment. IE A genset that is 45hp for example.
If you can provide more comprehensive information about your vessel and systems that will allow us to generate a more customised quote. Enter your vessel information via this form for the best outcome.

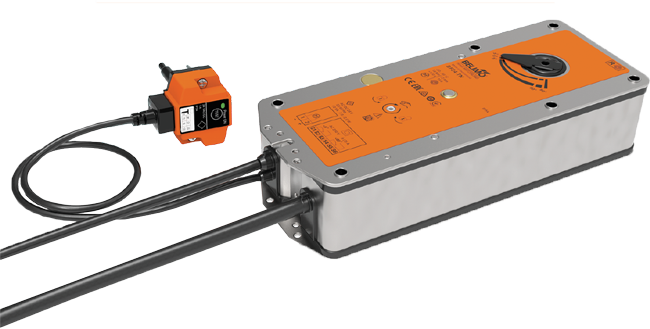

These Belimo Actuators are available as an option for our Stainless Steel Air Dampers.
- Automated fail safe DC actuator for SS Dampers
- Require positive and negative connection to power up
- Will trigger with any interruption of power as a fail safe.
- They also have an inbuilt thermal trigger that will activate when engine room temp exceeds its trigger point
- There are 2 pre-set trigger point options:
- 1 is 72 degrees Celsius and is the standard option.
- 2nd is 95 degrees Celsius and is typically used if the actuator is located near an exhaust or external heat source.
- They can be fitted to most damper sizes. Please ask if unsure.
- Available as a stand alone product or pre fitted to dampers prior to dispatch.
- Available from $825.00 or from $930.00 fitted.
