Our custom designed and manufactured equipment can be used across almost any marine application. You will find below an example of how our engine room ventilation equipment might be of use to you, whatever your vessel type or use. The flow charts and drawings are an example of how our equipment might be of best use to your application, however we do design and manufacture engine room ventilation systems to suit your exact boat and use.

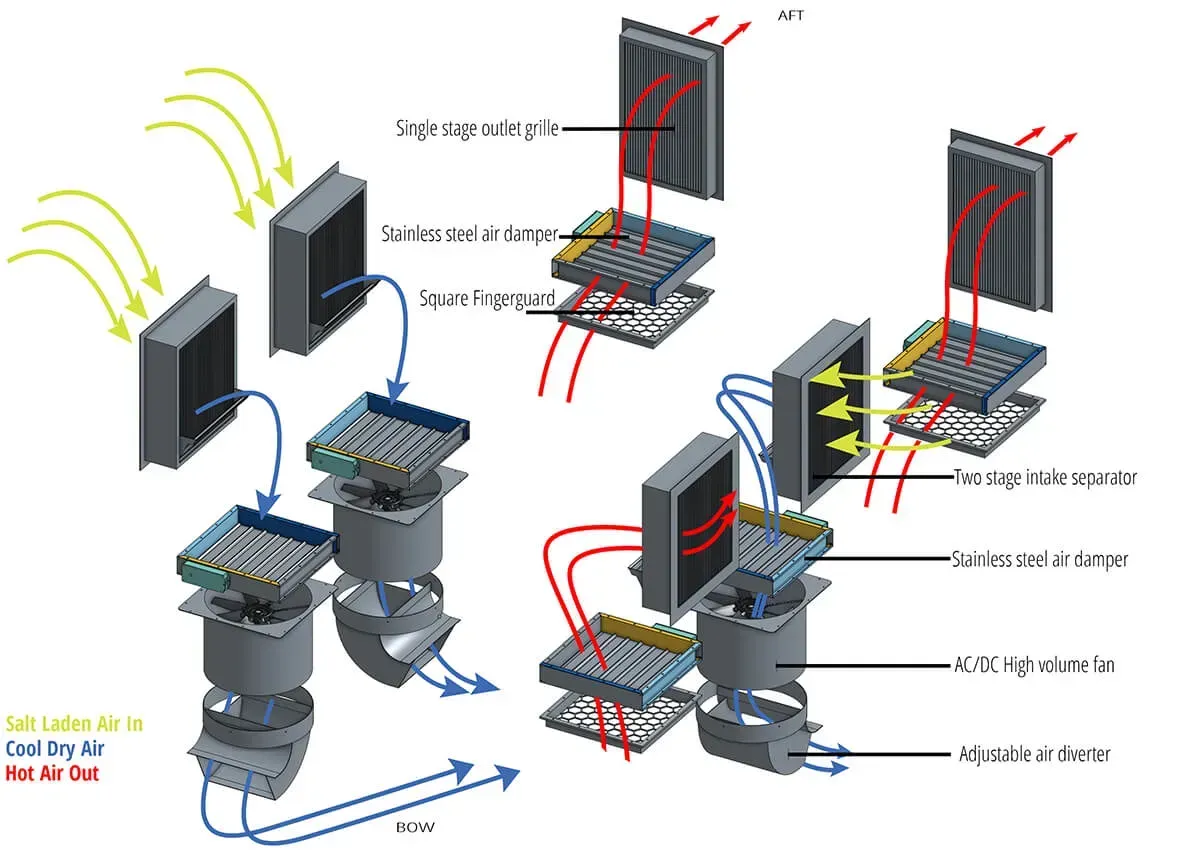

Commercial & Fishing Boats



Products shown in air flow chart:

  • Single stage air intake grille
  • AC or DC high volume fan
  • Adjustable air diverter
  • Stainless steel air damper (fire flap) Two stage intake separator grille
  • Square finger guard





Products shown in air flow chart:

  • Single stage air intake grille
  • AC or DC high volume fan
  • Adjustable air diverter
  • Stainless steel air damper (fire flap)Two stage intake separator grille
  • Square finger guard



Commercial & Fishing Boats

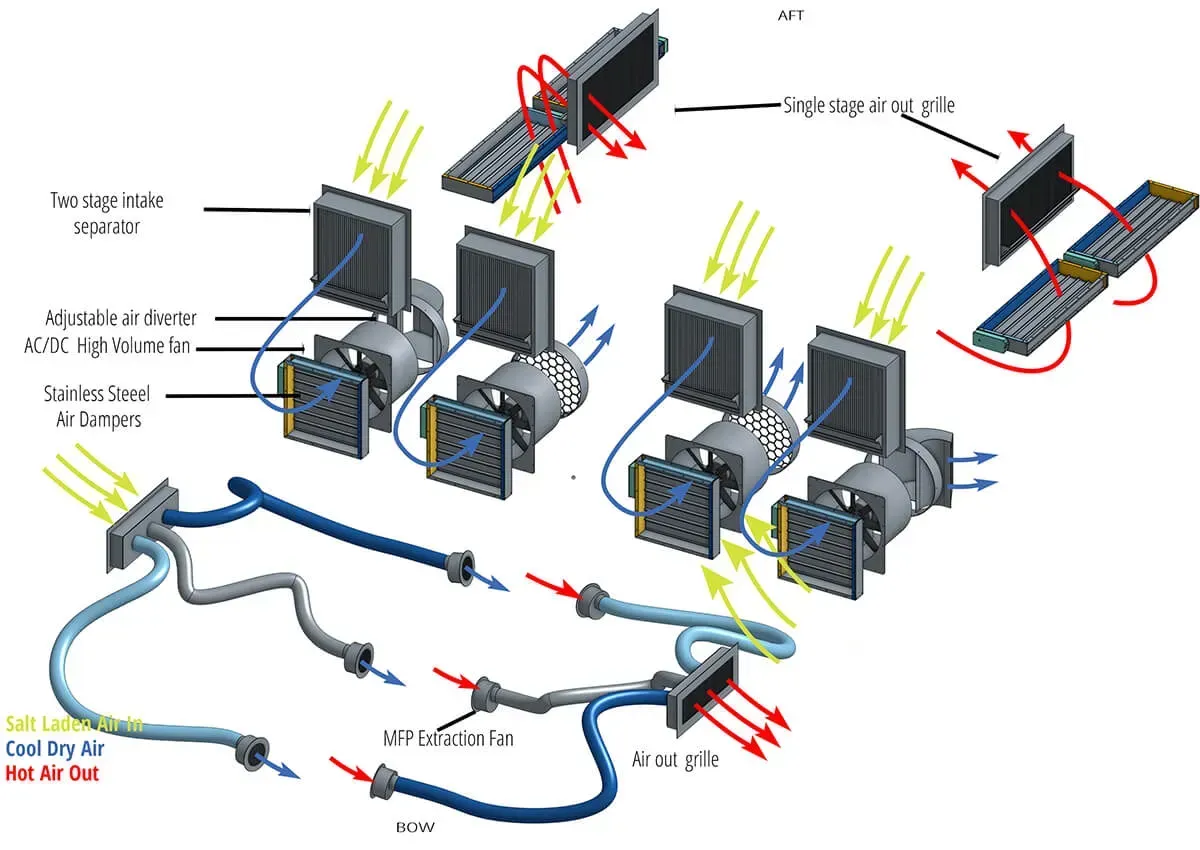

Coast Guard & Military Vessels



Products shown in air flow chart:

  • Two stage air intake grille
  • AC or DC high volume fan
  • Adjustable air diverter
  • Stainless steel air damper (fire flap)
  • Single stage air out grille
  • Round finger guard
  • Mixed flow fans and ducting





Products shown in air flow chart:

  • Two stage air intake grille
  • AC or DC high volume fan
  • Adjustable air diverter
  • Stainless steel air damper (fire flap)
  • Single stage air out grille
  • Square fire guard
  • Mixed flow fans and ducting



Coast Guard & Military Vessels

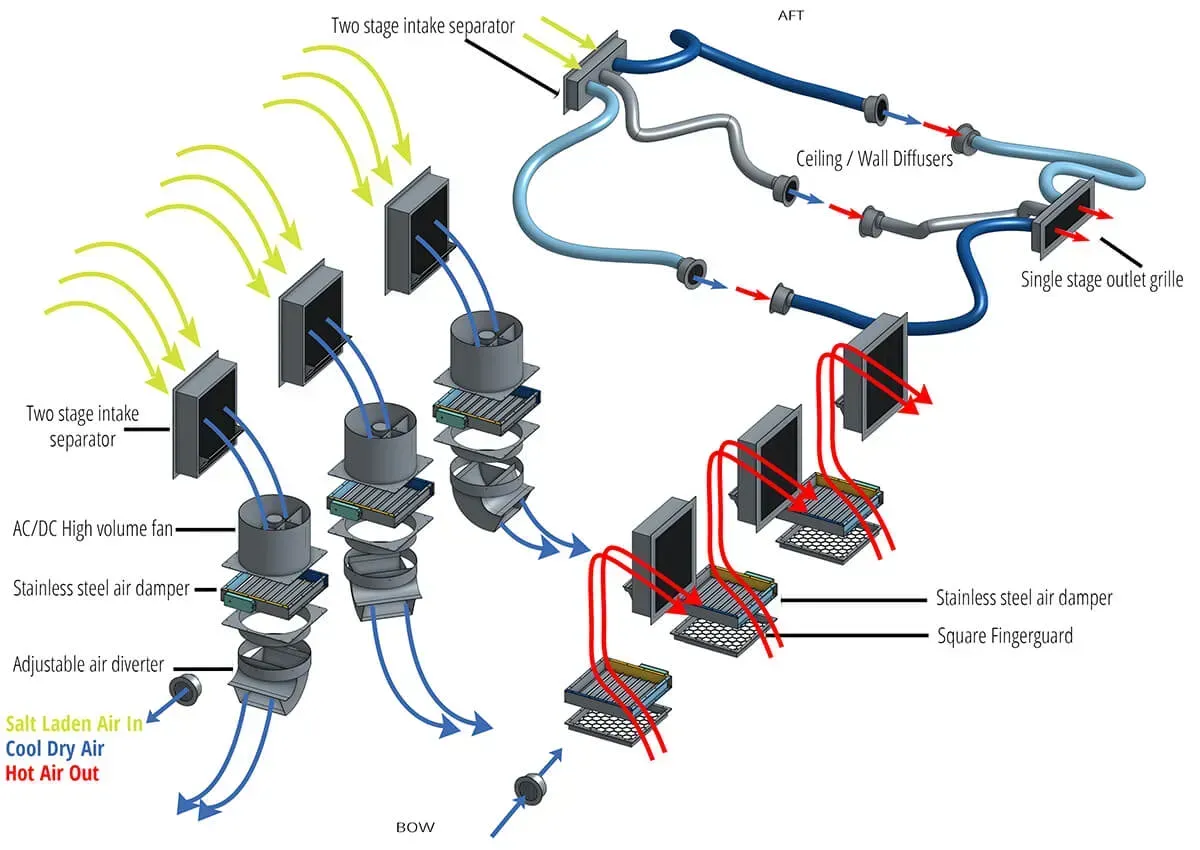

Luxury & Mega Yachts



Products shown in air flow chart:

  • Two stage air intake grille
  • AC or DC high volume fan
  • Adjustable air diverter
  • Stainless steel air damper (fire flap)
  • Single stage outlet air grille
  • Mixed flow ceiling /wall diffusers and ducting
  • Square finger guard





Products shown in air flow chart:

  • Two stage air intake grille
  • AC or DC high volume fan
  • Adjustable air diverter
  • Stainless steel air damper (fire flap)
  • Single stage outlet air grille
  • Mixed flow ceiling /wall diffusers and ducting
  • Square finger guard



Luxury & Mega Yachts

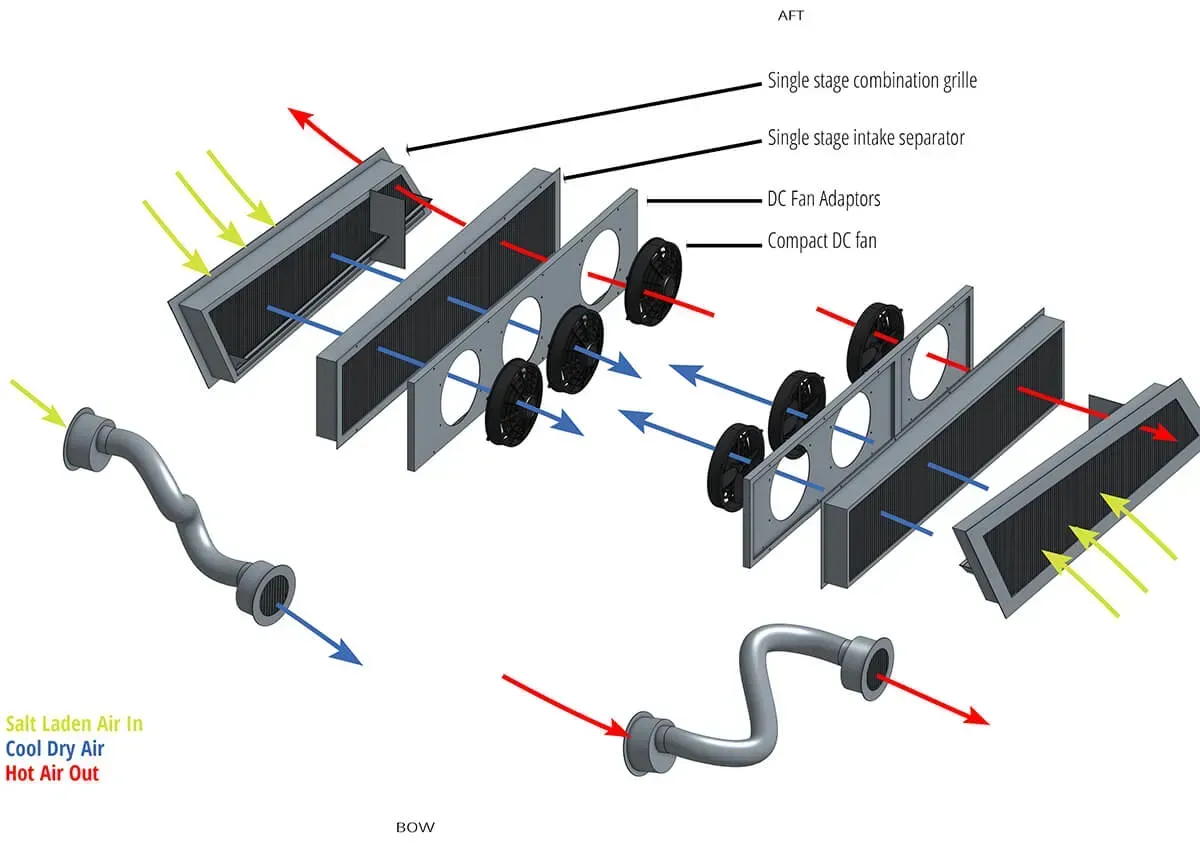

Recreational & Sports Fishing Vessels



Products shown in air flow chart:

  • Single stage air intake grille
  • DC compact fans
  • Stainless steel air damper (fire flap)
  • Two stage intake separator grille





Products shown in air flow chart:

  • Single stage air intake grille
  • DC compact fans
  • Stainless steel air damper (fire flap)
  • Two stage intake separator grille
  • Square fire guard



Recreational & Sports Fishing Vessels

Yachts & Sailing Boats



Products included in air flow chart:

  • Single stage air intake grille
  • DC compact supply and extraction fans
  • Stainless steel air dampers
  • Flex duct combination units
  • Round intake separator grilles
  • Square finger guard





Products included in air flow chart:

  • Single stage air intake grille
  • DC compact supply and extraction fans
  • Stainless steel air dampers
  • Flex duct combination units
  • Round intake separator grilles



Yachts & Sailing Boats

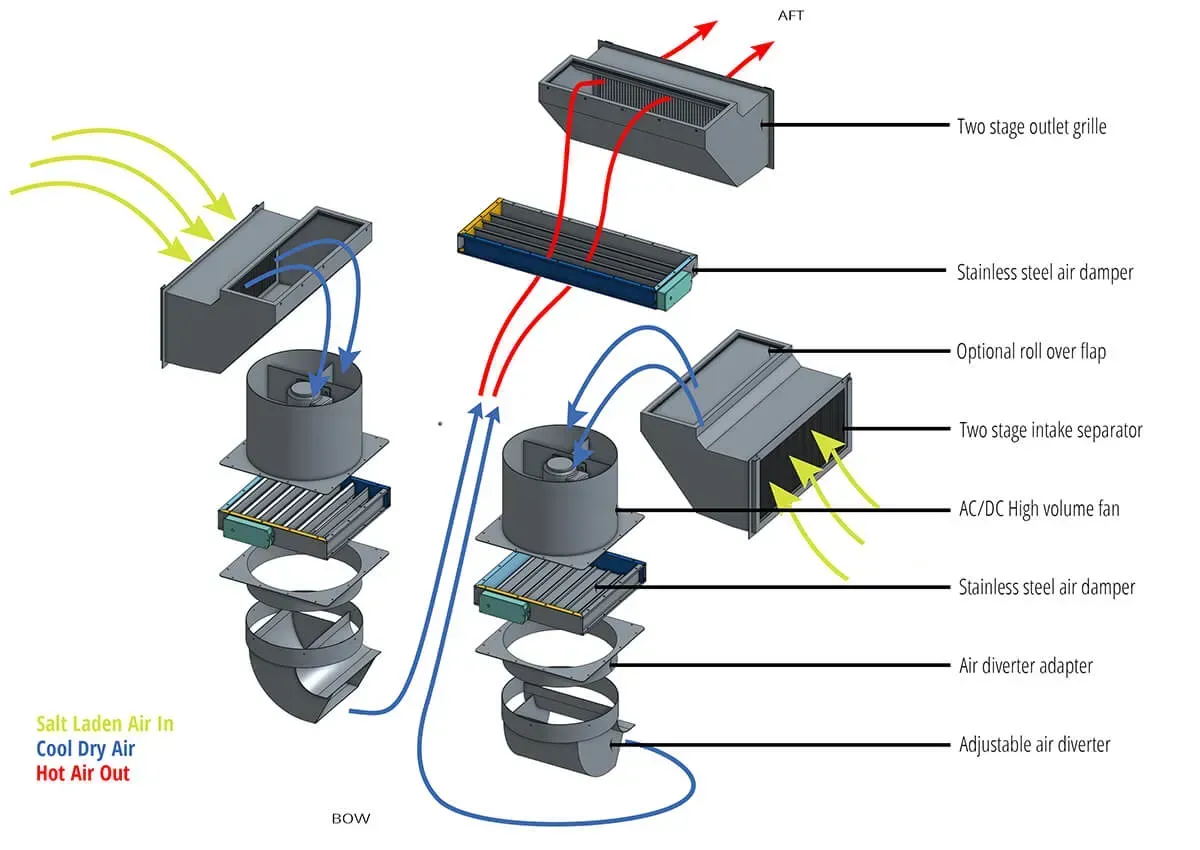

Tugs, Pilot Boats & Tenders



Products included in air flow chart

  • Two stage air intake grille
  • Stainless steel air damper
  • Optional roll over flap
  • AC or DC high volume fans
  • Air diverter adapter
  • Adjustable air diverter





Products included in air flow chart

  • Two stage air intake grille
  • Stainless steel air damper
  • Optional roll over flap
  • AC or DC high volume fans
  • Air diverter adapter
  • Adjustable air diverter



Tugs, Pilot Boats & Tenders
